MARINE SEATS

MP488/M100H

  • Technical Specification

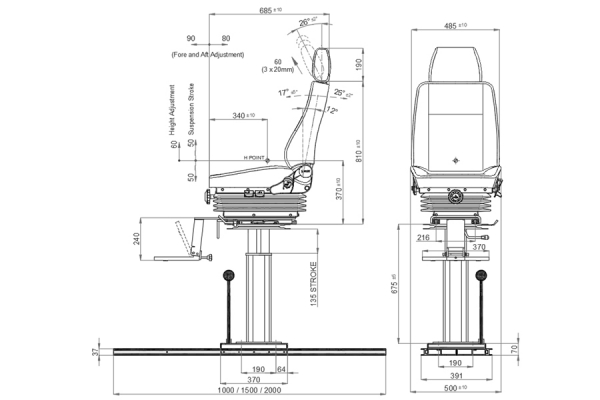

  • DIMENSIONS

Air suspension
Air suspension with 12V or 24V built-in compressor
Mechanical suspension
Weight adjustment Manual up to 150kgs.
Suspension stroke 100mm
Optional suspension stroke 60 mm - 80mm
Height adjustment 60mm
Height adjustable pedestal with turn table
Turn table
Adjustable shock absorber N/A
Slide travel 170mm
Lumbar adjustment
Adjustable armrests
Adjustable headrest
Backrest adjustment
Seat cushion tilt adjustment
Seat cushion depth adjustment N/A
Vinyl trim
Cloth trim
Genuine leather trim
3-point seat belt N/A
2-point seat belt N/A
Document pouch
Front Controls
LH Controls
RH Controls
Footrest KIT
Adjustable mounting rail
Standard connection of seat 216mm
Testing Materials flammability conforms
to IMO satndards

: Option : Standard N/A : Not Available
