MATERIAL HANDLING SEATS

22/EAN60

  • Technical Specification

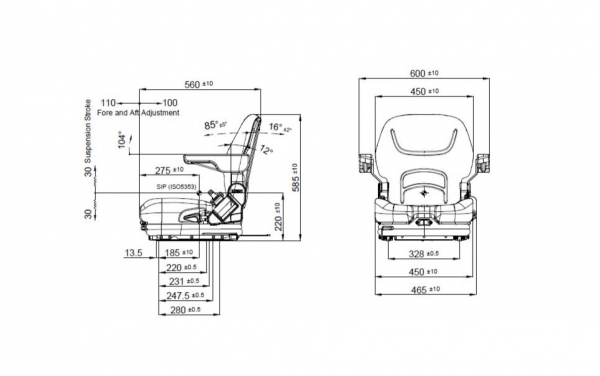

  • DIMENSIONS

Air suspension with 12V or 24V built-in compressor
Mechanical suspension
Weight adjustment Automatic up to 150kgs.
Suspension stroke 60mm
Optional suspension stroke 80mm
Height adjustment N/A
N/A
Turn Table
Slide travel 210mm
210mm
Lumbar adjustment
Hip restraints
Adjustable / Foldable armrests
Adjustable headrest
Backrest adjustment
Vinyl trim (Vacuum type)
Cloth trim (Vacuum type)
2-point seat belt
Document box-pouch
Heater
Operator presence switch
Standard connection width 328mm
Optional connection width 320mm
Testing EN13490 IT1,IT2
ECE R16.08
ISO 3795

: Option : Standard N/A : Not Available
