MATERIAL HANDLING SEATS

F140/MN60

  • Technical Specification

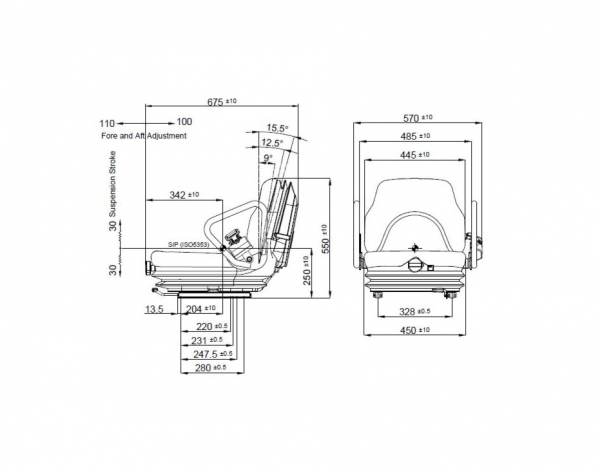

  • DIMENSIONS

Mechanical suspension
Weight adjustment Manual up to 130kgs.
Suspension stroke 60mm
Height adjustment N/A
Turn Table
Slide travel 210mm
Lumbar adjustment N/A
Hip restraints
Adjustable / Foldable armrests
Headrest N/A
Backrest adjustment
Vinyl trim (Vacuum type)
Cloth trim (Vacuum type)
2-point seat belt
Document box
Heater
Operator presence switch
Standard connection widths 328mm
Optional connection widths 320mm
Testing EN13490 IT1,IT2
ISO 7096 EM8
ISO6683
EN1726-1

: Option : Standard N/A : Not Available
