AGRICULTURAL SEATS

P100/M61X

  • Technical Specification

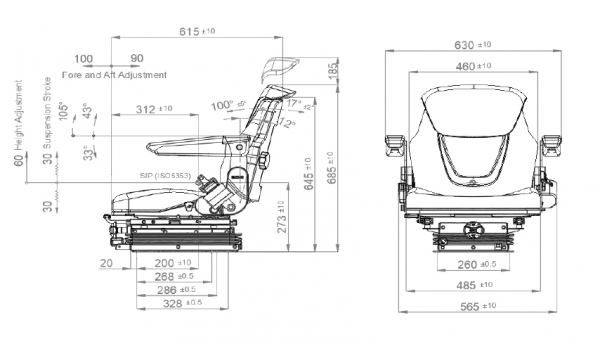

  • DIMENSIONS

Air suspension N/A
Air suspension with 12V or 24V built-in compressor ▲
Mechanical suspension ●
Weight adjustment Manual up to 150kgs.
Suspension stroke 60mm
Height adjustment 60mm
Turn Table ▲
Slide travel 190 mm
Lumbar adjustment ▲
Adjustable / Foldable armrests ▲
Adjustable headrest ▲
Backrest adjustment ●
Vinyl trim (Vacuum type) ●
Cloth trim (Vacuum type) ▲
3-point seat belt N/A
2-point seat belt ▲
Document box-pouch ▲
Heater ▲
Operator presence switch ▲
Slides between seat top and suspension ●
Standard connection widths 260mm
Optional connection widths 280mm - 320mm
Testing EU 1322/2014 Annex XIV
Class I, II , III
ECE R16.08
ISO 3795

▲ : Option ● : Standard N/A : Not Available
