AGRICULTURAL SEATS

P145/M110X

  • Technical Specification

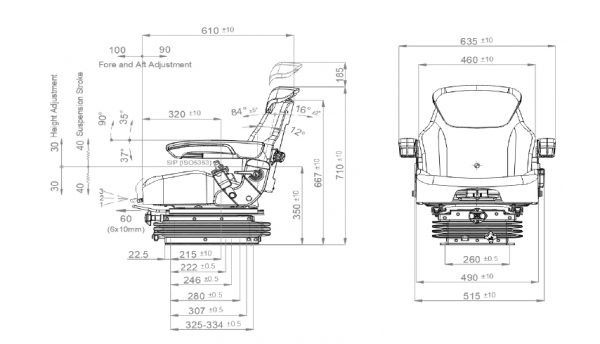

  • DIMENSIONS

Air suspension N/A
Air suspension with 12V or 24V built-in compressor
Mechanical suspension
Weight adjustment Manual up to 150kgs.
Suspension stroke 80mm
Height adjustment 60mm
Turn Table
Adjustable shock absorber N/A
Slide travel 190mm
Lumbar adjustment
Horizontal isolator N/A
Adjustable / Foldable armrests
Adjustable headrest
Backrest adjustment
Seat cushion tilt adjustment
Seat cushion depth adjustment
Vinyl trim (Cut&Sew)
Cloth trim (Cut&Sew)
Vinyl trim (Vacuum type) Order P140/M110X
Cloth trim (Vacuum type) Order P140/M110X
3-point seat belt N/A
2-point seat belt
Document box-pouch
Front Controls (except backrest recline handle)
LH Controls N/A
RH Controls N/A
Heater
Operator presence switch
Slides between seat top and suspension
Standard connection widths 260mm
260mm
Optional connection widths 280mm (Order ----/CM110X)
Testing EU 1322/2014 Annex XIV
Class I, II , III
ECE R16.08
ISO 3795
ISO 7096 EM3, EM5, EM6

: Option : Standard N/A : Not Available
