AGRICULTURAL SEATS

P120/M100H

  • Technical Specification

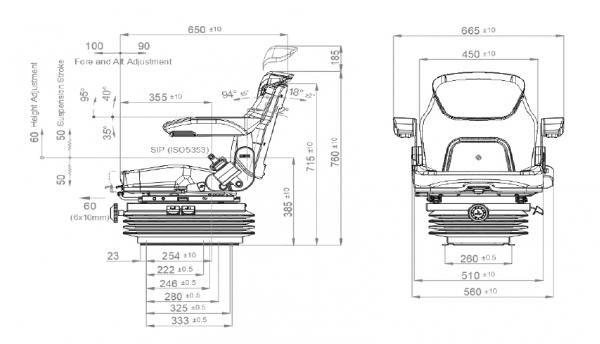

  • DIMENSIONS

Air suspension
Air suspension with 12V or 24V built-in compressor
Mechanical suspension
Weight adjustment Manual up to 150kgs.
Suspension stroke 100mm
Optional suspension stroke 60mm - 80mm
Height adjustment 60mm
Turn Table
Adjustable shock absorber N/A
Slide travel 190mm
190mm
Lumbar adjustment
Adjustable / Foldable armrests
Adjustable headrest
Backrest adjustment
Seat cushion tilt adjustment
Seat cushion depth adjustment
Vinyl trim (Vacuum type)
Cloth trim (Vacuum type)
3-point seat belt N/A
N/A
2-point seat belt
Document box-pouch
LH Controls
RH Controls
Heater
Operator presence switch
Slides between seat top and suspension
Standard connection widths 260mm
Optional connection widths 280mm (Order ----/CM100H)
Testing EU 1322/2014 Annex XIV
Class I, II , III
ECE R16.08
ISO 3795

: Option : Standard N/A : Not Available
