CONSTRUCTION SEATS

P1104

  • Technical Specification

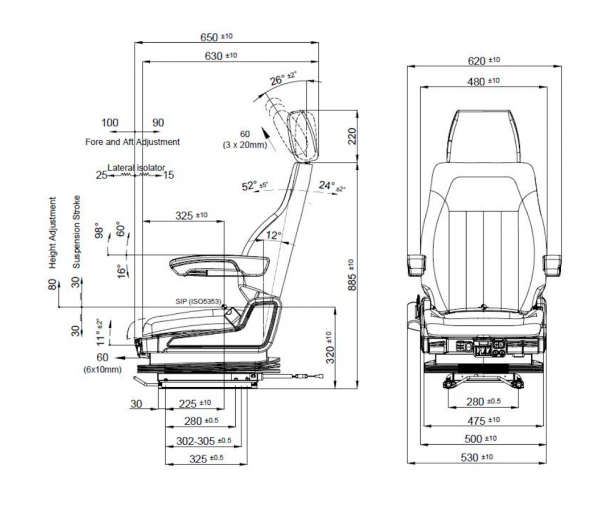

  • DIMENSIONS

Air suspension N/A
Air suspension with 12V or 24V built-in compressor
Mechanical suspension N/A
Weight adjustment Automatic up to 150kgs.
Suspension stroke 60mm
Height adjustment 80mm
Turn table
Adjustable shock absorber
Horizontal isolator
Slide travel 190mm
Pneumatic Lumbar Adjustment
Adjustable / Foldable armrests
Adjustable headrest
Backrest adjustment
Seat cushion tilt adjustment
Seat cushion depth adjustment
Vinyl trim (Cut&Sew)
Cloth trim (Cut&Sew)
Genuine leather trim
3-point seat belt
2-point seat belt
Document box-pouch
Front Controls
LH Controls N/A
RH Controls N/A
N/A
Heater
Operator presence switch
Cooling
Lane Tracking
Slides between seat top and suspension N/A
Standard connection widths 280mm
Optional connection widths 216 - 230 - 260 - 320 - 328mm
Testing ISO 6683
ISO7096-EM1,EM2
ECE R16.08
ISO 3795

: Option : Standard N/A : Not Available
