CONSTRUCTION SEATS

P1410 / EA61

  • Technical Specification

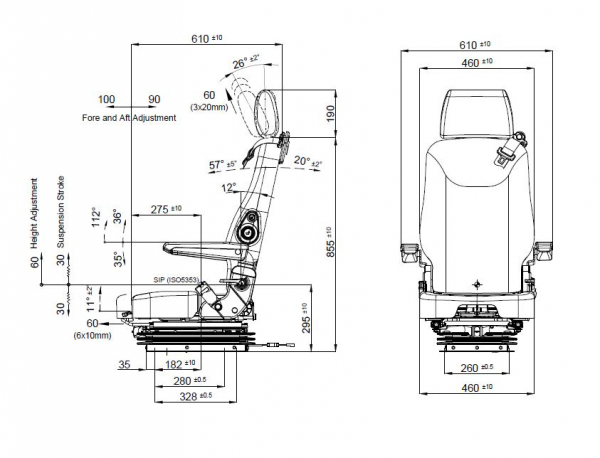

  • DIMENSIONS

Air suspension N/A
Air suspension with 12V or 24V built-in compressor
Mechanical suspension
Weight adjustment Manual up to 150kgs.
Suspension stroke 60 mm
Height adjustment 60 mm
Turn Table
Slide travel 190 mm
Lumbar adjustment
Adjustable / Foldable armrests
Adjustable headrest
Backrest adjustment
Seat cushion tilt adjustment
Seat cushion depth adjustment
Vinyl trim (Cut&Sew)
Cloth trim (Cut&Sew)
Genuine leather trim
3-point seat belt
2-point seat belt
Document box-pouch
Front Controls (except backrest recline handle)
LH Controls N/A
RH Controls N/A
Heater
Operator presence switch
Slides between seat top and suspension
Standard connection widths 260mm
Optional connection widths 280 mm - 320 mm
Testing ISO 6683
ECE R16.08
ISO 3795

: Option : Standard N/A : Not Available
