CONSTRUCTION SEATS

P145/EA101

  • Technical Specification

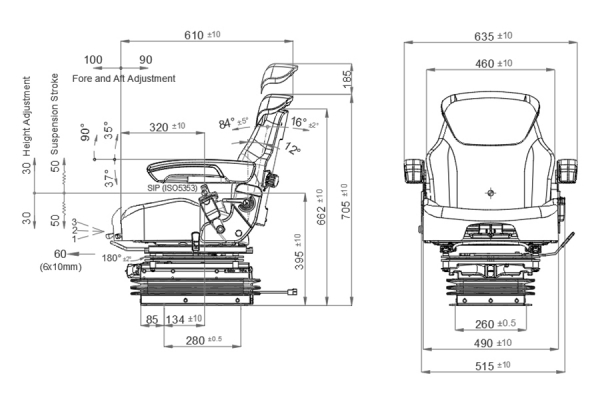

  • DIMENSIONS

Air suspension N/A
Air suspension with 12V or 24V built-in compressor ●
Mechanical suspension ▲
Weight adjustment Manual up to 150kgs.
Suspension stroke 100mm
Height adjustment 60mm
Turn Table ▲
Adjustable shock absorber N/A
Slide travel 190mm
Lumbar adjustment ▲
Horizontal isolator N/A
Adjustable / Foldable armrests ▲
Adjustable headrest ●
Backrest adjustment ●
Seat cushion tilt adjustment ●
Seat cushion depth adjustment ●
Vinyl trim (Cut&Sew) ▲
Cloth trim (Cut&Sew) ●
Vinyl trim (Vacuum type) ▲ Order P140/EA101
Order P140/EA101
Order P140/EA101
Cloth trim (Vacuum type) ▲ Order P140/EA101
3-point seat belt N/A
2-point seat belt ▲
Document box-pouch ▲
Front Controls (except backrest recline handle) ●
LH Controls N/A
RH Controls N/A
Heater ▲
Operator presence switch ▲
Slides between seat top and suspension ●
Standard connection widths 260mm
Optional connection widths 280mm (Order ----/CEA101)
Testing ISO 6683
ISO 7096-EM5
ECE R16.08
ISO 3795

▲ : Option ● : Standard N/A : Not Available
