CONSTRUCTION SEATS

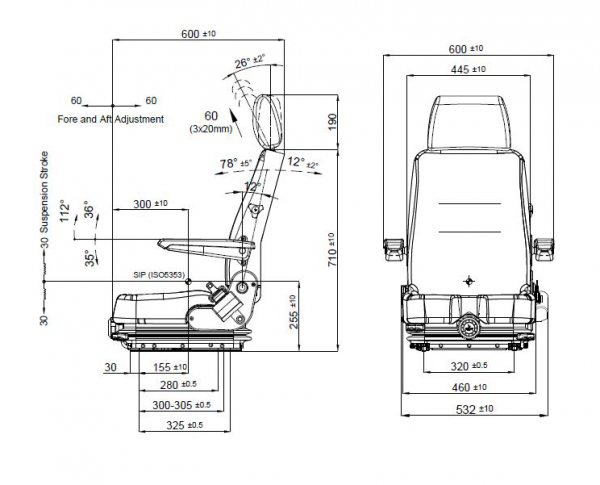

P408 / MN60
| Air suspension |
N/A |
| Air suspension with 12V or 24V built-in compressor |
▲
|
| Mechanical suspension |
●
|
| Weight adjustment |
Manual up to 150kgs. |
| Suspension stroke |
60 mm |
| Turn Table |
▲
|
| Slide travel |
190 mm |
| Lumbar adjustment |
▲
|
| Adjustable / Foldable armrests |
▲
|
| Adjustable headrest |
●
|
| Backrest adjustment |
●
|
| Seat cushion tilt adjustment |
N/A |
| Seat cushion depth adjustment |
N/A |
| Vinyl trim (Cut&Sew) |
●
|
| Cloth trim (Cut&Sew) |
▲ |
| Genuine leather trim |
▲ |
| 3-point seat belt |
▲ |
| 2-point seat belt |
▲ |
| Document box-pouch |
▲ |
| Front Controls |
● |
| LH Controls |
N/A |
| RH Controls |
N/A |
| Heater |
▲
|
| Operator presence switch |
▲ |
| Slides between seat top and suspension |
N/A |
| Standard connection widths |
320 mm |
| Optional connection widths |
180 mm - 328 mm |
| Testing |
ISO 6683
EN 13490- IT1,IT2
ECE R16.08
ISO 3795 |
▲ : Option
● : Standard
N/A : Not Available
