CONSTRUCTION SEATS

P406 / M80H

  • Technical Specification

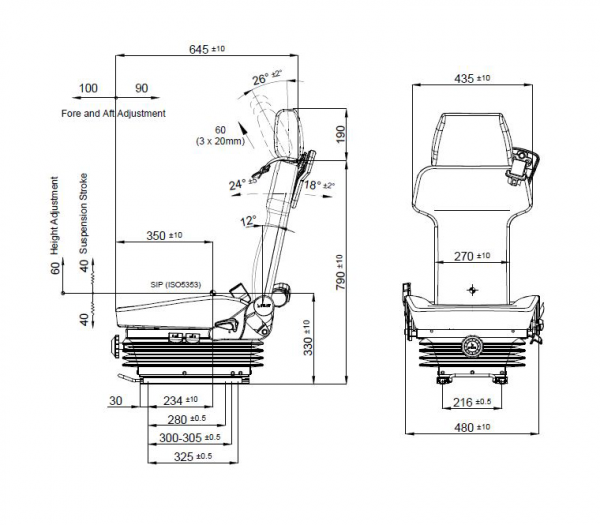

  • DIMENSIONS

Air suspension ▲
Air suspension with 12V or 24V built-in compressor ▲
Mechanical suspension ●
Weight adjustment Manual up to 150kgs.
Suspension stroke 80mm
Optional suspension stroke 60 mm - 100 mm
Height and tilt adjustment 60mm
Turn Table ▲
Slide travel 190mm
Lumbar adjustment N/A
Adjustable / Foldable armrests N/A
Adjustable headrest ●
Backrest adjustment ●
Vinyl trim (Cut&Sew) ●
Cloth trim (Cut&Sew) ▲
Genuine leather trim ▲
3-point seat belt ▲
2-point seat belt ▲
Document box-pouch ▲
Front Controls ▲
LH Controls ●
RH Controls ▲
Heater ▲
Operator presence switch ▲
Slides between seat top and suspension ▲
Standard connection widths 216mm
Optional connection widths 230 - 260 - 280 - 320 - 328 mm
Testing
ISO 7096- EM3,EM5
ECE R16.08
ISO 3795

▲ : Option ● : Standard N/A : Not Available
