CONSTRUCTION SEATS

P160 / M110X

  • Technical Specification

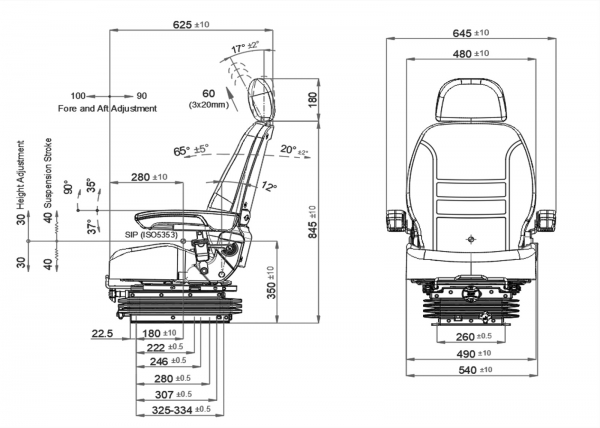

  • DIMENSIONS

Air suspension N/A
Air suspension with 12V or 24V built-in compressor ▲
Mechanical suspension ●
Weight adjustment Manual up to 150kgs.
Suspension stroke 80mm
Height adjustment 60mm
Turn Table ▲
Adjustable shock absorber N/A
Slide travel 190mm
Lumbar adjustment ▲
Horizontal isolator N/A
Adjustable / Foldable armrests ▲
Adjustable headrest ●
Backrest adjustment ●
Seat cushion tilt adjustment ▲ Order P170/M110X
Order P170/M110X
Seat cushion depth adjustment ▲ Order P170/M110X
Order P170/M110X
Vinyl trim (Cut&Sew) ▲
Cloth trim (Cut&Sew) ▲ Order P165/M110X
Order P165/M110X
Vinyl trim (Vacuum type) ●
Cloth trim (Vacuum type) ▲
3-point seat belt N/A
2-point seat belt ▲
Document box-pouch ▲
Front Controls (except backrest recline handle) ●
LH Controls N/A
RH Controls N/A
Heater ▲
Operator presence switch ▲
Slides between seat top and suspension ●
Standard connection widths 260mm
Optional connection widths 280mm (Order ----/CM110X)
Testing
EU 1322/2014 Annex XIV
Class I, II ,III
ISO 7096-EM3,EM5,EM6
ECE R16.08
ISO 3795

▲ : Option ● : Standard N/A : Not Available
