CONSTRUCTION SEATS

P408/EAN60

  • Technical Specification

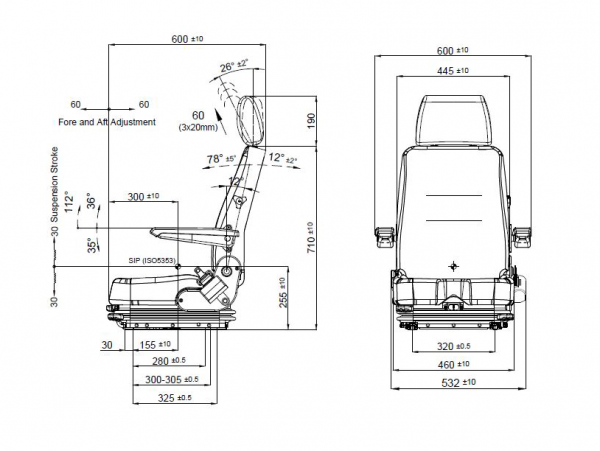

  • DIMENSIONS

Air suspension N/A
Air suspension with 12V or 24V built-in compressor ●
Mechanical suspension ▲
Weight adjustment Manual up to 150kgs.
Suspension stroke 60 mm
Turn Table ▲
Slide travel 190 mm
Lumbar adjustment ▲
Adjustable / Foldable armrests ▲
Adjustable headrest ●
Backrest adjustment ●
Seat cushion tilt adjustment N/A
Seat cushion depth adjustment N/A
Vinyl trim (Cut&Sew) ●
Cloth trim (Cut&Sew) ▲
Genuine leather trim ▲
3-point seat belt ▲
2-point seat belt ▲
Document box-pouch ▲
Front Controls ●
LH Controls N/A
RH Controls N/A
Heater ▲
Operator presence switch ▲
Slides between seat top and suspension N/A
Standard connection widths 320 mm
Optional connection widths 180 mm - 328 mm
Testing ECE R14-M2/N2
ECE R16.08
ISO 3795

▲ : Option ● : Standard N/A : Not Available
